Buying a truck bed tool box that looks right but does not fit your truck can create several problems.
The box may be too wide for the bed. The lid may hit the cab or tonneau cover. A chest-style box may take up more cargo space than expected. A crossover box may sit incorrectly on the bed rails.
That is why you should measure the truck before choosing a toolbox.
The correct truck tool box size depends on more than the advertised width. You also need to check bed width, rail width, bed depth, installation position, lid clearance, and the space you still need for cargo.
This guide explains how to measure your truck bed step by step and how to use those measurements to choose the right storage solution.
If you are still comparing different structures, you can also browse LANSHUO's truck tool boxes and truck bed storage boxes to see how chest, low-profile, crossover, underbody, and other configurations use vehicle space differently.
Why Truck Tool Box Measurements Matter
A toolbox should fit the truck and the way you use it.
Two trucks may have similar overall bed lengths but very different usable storage areas.
The wheel wells, bed rails, cab position, bed liner, tonneau cover, and other accessories can all reduce the available space.
A poor fit can cause:
- Lid opening problems
- Interference with the truck cab
- Reduced cargo space
- Difficult installation
- Poor mounting support
- Toolbox movement during driving
For fleet operators, truck body builders, and distributors, incorrect dimensions can become an even larger problem when the same box is ordered for many vehicles.
Measure first. Then compare the measurements with the actual truck toolbox dimensions.

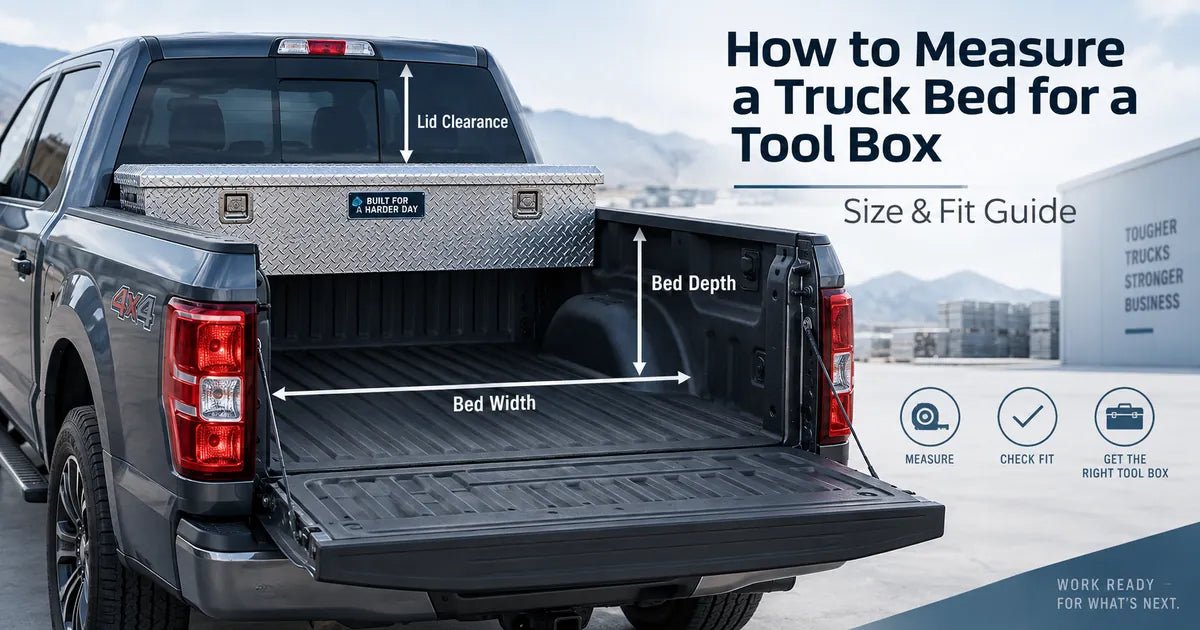

What Measurements Do You Need Before Buying?
You do not need complicated equipment.
A tape measure, notebook, and a few minutes around the truck are usually enough.
At minimum, record these measurements:
- Inside bed width
- Bed rail width
- Distance between the bed rails
- Truck bed depth
- Available front-to-back space
- Lid opening clearance
- Wheel-well position
- Space needed for other cargo or accessories
Do not rely only on the truck model name.
Even trucks from the same series can have different beds, liners, covers, and aftermarket equipment.
Measure the Inside Width of the Truck Bed
Start by measuring the clear inside width of the bed.
Measure from the inside wall on one side to the inside wall on the other.
This measurement is especially important for a truck bed storage box that sits directly on the bed floor.
Make sure you measure the narrowest usable point if the bed has:
- Molded liners
- Internal brackets
- Side storage systems
- Other accessories
A box that is only slightly too wide may not sit flat.
Do not assume that an advertised "full-size pickup toolbox" will automatically fit every full-size pickup.
Measure the Distance Between the Bed Rails
If you are considering a crossover or saddle-style box, measure the clear distance between the left and right bed rails.
Then measure the outside distance across the rails.
Why do you need both?
Because a crossover box normally needs a body narrow enough to sit between the rails while its upper section or mounting area rests correctly across them.
This is one of the most common fitment points for a pickup truck tool box.
Also check whether you already have:
- Rail caps
- Bed racks
- Tonneau cover rails
- Tie-down systems
These accessories can reduce usable rail space.
For buyers considering a crossover-style configuration, the 201015 aluminum truck bed tool box is a useful example of why you should compare the box structure with both the bed and rail dimensions before ordering.
Check the Truck Bed Depth
Next, measure from the bed floor to the top of the bed rail.
This tells you how much vertical space is available.
Bed depth matters for two reasons.
First, a deep box may extend farther into the bed than expected.
Second, a tall box may sit high above the rails and affect rear visibility.
If maintaining visibility is important, a low profile truck tool box may be a better option than a tall storage box.
A lower profile can also help when the vehicle has other equipment mounted above or around the bed.
For example, LANSHUO's 201004 low-profile aluminum flatbed truck tool box uses a long horizontal design and is available in several configurations. It shows how the same general storage concept can use width and length instead of unnecessary height. LANSHUO
Measure Front-to-Back Space
Width gets most of the attention, but front-to-back space is just as important.
Measure from the front wall of the bed toward the wheel well or other obstruction.
Ask yourself:
How much bed length am I willing to give to the toolbox?
A contractor who carries long materials may want to preserve as much bed length as possible.
A service technician may prefer a deeper toolbox because organized equipment storage is more important than open cargo area.
This is where the application matters.
Do not simply choose the largest box that fits.
Choose the box that leaves enough usable bed space after installation.
Check Wheel-Well Clearance
Wheel wells reduce usable truck bed space.
This becomes especially important for chest-style boxes that sit on the bed floor.
Measure:
- Distance between the wheel wells
- Distance from the front wall to the wheel well
- Height of the wheel-well housing
If the toolbox will sit close to or between them, confirm the actual base dimensions rather than only the top dimensions.
This small step can prevent a very common installation problem.
Check Lid Opening Clearance
A toolbox can physically fit in the bed and still be impossible to use properly.
Always check how the lid or door opens.
For a top-opening truck bed toolbox, measure the space above and behind the box.
Ask:
- Will the lid hit the truck cab?
- Will it hit a rear window guard?
- Will a tonneau cover block it?
- Will a bed rack interfere?
- Can the lid open far enough for comfortable access?
A gas-strut lid still needs clearance.
If you use a tonneau cover, measure the cover rails and the space required for the cover to roll, fold, or retract.
Do this before buying the toolbox, not after installation.
Chest-Style Tool Box: Measure the Floor Space Carefully
A chest-style toolbox sits directly inside the truck bed.
This configuration can provide deep storage and keeps equipment contained in one large compartment.
It works well when users need to store:
- Hand tools
- Recovery equipment
- Towing accessories
- Maintenance supplies
- Power tools
However, a chest box uses actual bed-floor space.
That makes front-to-back depth especially important.
A good example is LANSHUO's 201008 48 inch aluminum truck bed tool box, which uses a chest-style body with a full top-opening lid. The current model measures 122 × 52 × 46 cm, so buyers should compare all three dimensions with the usable truck bed area rather than checking the "48 inch" width alone. LANSHUO
This is an important rule for any 48 inch truck tool box:
The advertised width is only one measurement.
Depth and height still determine whether the toolbox works well in the vehicle.
Low-Profile vs Standard-Height Tool Boxes
A low-profile design can solve several fitment problems.
It may provide:
- Better rear visibility
- Lower overall vehicle profile
- Easier integration with commercial truck bodies
- Less interference with other equipment
However, lower height also changes internal storage capacity.
Before choosing a low profile truck tool box, think about what you actually store.
Large power tools may need more internal height.
Hand tools, straps, repair supplies, and smaller parts may work well in a shallower storage system.
The goal is not to choose the smallest box.
The goal is to match the internal space to the equipment you carry.
Do Not Forget Tonneau Covers and Bed Accessories
Many buyers measure the truck itself but forget the accessories already installed.
This is a common source of fitment problems.
Check:
Tonneau Cover Rails
They may reduce the usable rail width.
Bed Liner
A thick drop-in liner can slightly reduce internal dimensions.
Bed Rack
Vertical supports may limit toolbox width or lid travel.
Tie-Down Points
Do not block important cargo anchors unless you have another solution.
Fifth-Wheel or Towing Equipment
Make sure the toolbox does not interfere with turning clearance or towing hardware.
When several accessories share the same truck bed, plan the full layout before choosing the box.
How Much Storage Capacity Do You Actually Need?
Bigger is not always better.
A large toolbox for truck bed applications provides more storage, but it also uses more vehicle space and adds more loaded weight.
Start by listing what you normally carry.
For example:
Light Service Use
- Hand tools
- Small repair kits
- Tie-down straps
A compact chest or low-profile box may be enough.
Contractor Use
- Power tools
- Batteries
- Larger hand tools
- Safety equipment
You may need a deeper or wider box.
Fleet or Commercial Use
- Standardized tool sets
- Vehicle repair supplies
- Work accessories
Consistency, access, and repeatable fitment across vehicles may matter more than maximum capacity.
This is why professional buyers often specify both external dimensions and required internal layout.
What If Standard Truck Tool Box Sizes Do Not Fit?
Not every truck body works with a standard toolbox.
Custom dimensions may make sense when:
- The vehicle body has limited mounting space
- You need to preserve a specific cargo area
- A fleet uses a special truck configuration
- The standard box is too tall or too deep
- You need a specific door or lid direction
- You are developing a private-label product line
For B2B buyers, truck body builders, equipment distributors, and fleets, LANSHUO supports custom dimensions, locks, finishes, branding, and packaging on selected truck storage products. LANSHUO
If you already have a vehicle drawing or target dimensions, you can contact LANSHUO for a custom truck tool box solution.
Truck Tool Box Measurement Checklist
Before you order, record the following:
| Measurement | Why It Matters |
|---|---|
| Inside bed width | Confirms the box body can fit |
| Bed rail spacing | Important for crossover installation |
| Outside rail width | Helps check mounting support |
| Bed depth | Controls box height and usable space |
| Front-to-wheel-well distance | Important for chest-style boxes |
| Lid clearance | Prevents cab or cover interference |
| Wheel-well clearance | Prevents floor-mounted fit problems |
| Accessory clearance | Checks tonneau covers, racks and towing equipment |
Measure twice if possible.
For fleet or bulk purchases, confirm dimensions on the exact vehicle configuration before placing a production order.
Final Tips Before Choosing a Truck Bed Tool Box
A properly fitted truck bed tool box should feel like part of the vehicle, not an obstacle inside it.
Before buying:
- Measure the truck, not just the advertised bed size.
- Check all three toolbox dimensions.
- Leave enough space for the lid or doors to open.
- Consider wheel wells and bed accessories.
- Think about the cargo space you still need.
- Match storage capacity to your actual tools.
- Choose custom dimensions when standard sizes create compromises.
The right fit improves access, protects your equipment, and keeps the truck more useful for daily work.
